This 10.1 inch touch panel adopts a cover glass+sensor glass structure. It is one of our hot selling products. It’s a capacitive touch screen that has a more accurate and sensitive touching function. It can support I2C/USB/ interface . It’s very easy to operate. But if you need to customize your own 10.1 inch touch screen, we can also satisfy you.
10.1-inch G+G capacitive touch panel —GT9271 10.1 inch touch screen from DINGTouch .We design to deliver exceptional touch sensitivity, long-term durability, and industrial-grade reliability for demanding applications. Featuring a robust Glass+Glass structure, Microchip touch controller, and I²C communication interface. This touch panel provides highly accurate multi-touch performance and seamless integration into embedded systems.
Whether used in industrial automation, medical equipment, vehicle displays, or smart kiosks, this solution offers the durability and responsiveness required in professional environments.
The specification of 10.1 inch touch screen
| Manufacturer | Dingtouch |
| Product Name | 10.1 inch Touch screen |
| Part Number | DT |
| Structure | Cover glass+Sensor glass |
| Interface | I2C |
| Silk printing color | Black |

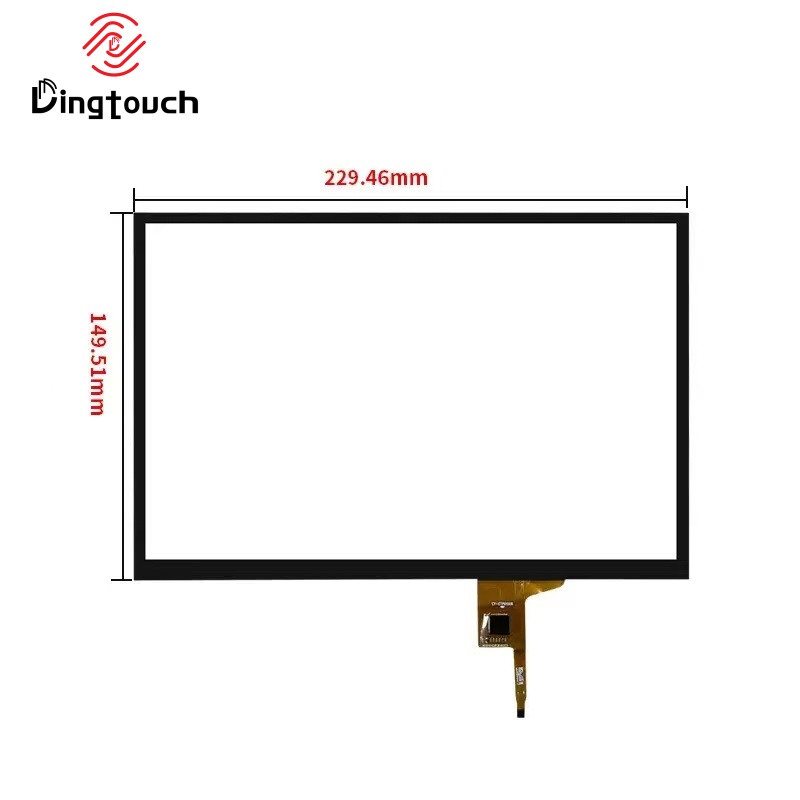

| Cover lens outline dimension | 229.46×149.51mm |
| Cover lens Viewing dimension | 217.96×136.60mm |
| Sensor outline dimension | 227.72×147.80mm |
| Sensor active area | |
| Cover lens thickness | 0.55mm |
| Sensor glass thickness | 1.85mm |
| Total touch screen thickness | 2.6 mm |
| Controller | GT9271 |
| Touch points | 10 |
| Working voltage | 2.8-3.3V |
| Light transmittance | ≥85% |
| Hardness | 6H |
| Working Temperature | -20℃~ +70℃ |
| Working Humidity | 0% to 90% |
| Storage Temperature | -20℃ ~ +80℃ |
| Storage Humidity | 0% to 90% |
| Without individual tolerance | ± 0.2mm |
| Operating system | Windows , Android,Linux OS |
| Warranty | 12months |
| Business trade items | EXW |
The Glass+Glass laminated structure provides excellent mechanical strength and surface hardness, making the panel resistant to scratches, impact, and frequent operation.
Compared to PET-based touch panels, G+G construction delivers better transparency and light transmission for brighter, clearer display performance.
Ideal for continuous-use industrial and commercial environments where reliability is critical.
We support complete customization including:
Our R&D team provides:
Every panel undergoes rigorous testing for:
We as a professional customized touch screen manufacturer with more than 13 years touch screen experience. So we are welcome to customize your capacitive touch screen . So that here are some of our standard product . Such as 7 inch touch screen, 10.1 inch touch screen ,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,17.3 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen, 23.6 inch touch screen,23.8 inch touch screen,27 inch touch screen.Contact our team today to buy a capacitive touch screen are best for our retail business needs.
